SEMAC-S1 / SEMAC-S2

SEMAC-S1
Verification Mode: Card / Password
Dual Doors Access: One door two ways or two doors one way direction
Software Application: SoMac
Design: Panel size design access control panel for installation flexibility
Card Capacity: 20,000 (extendable to 50,000)
Inbuilt HTTP Web Server: For management
Communications: TCP/IP, Wiegand/RS485
Fire Alarm and Event Handle: With email alert
DIO Support: DI: 5 / DO: 4
Remote Control: For emergency doors open/close
Inbuilt Relays (Max. Power Loading):
(1) Door Lock / Event Handle
(2) NO (5A 250VAC / 30VDC / 10A 125VAC)
(3) NC (3A 250VAC / 5A 30VDC)
System Log: 1,536 entries
Entry Log: 65,535 entries
Time Set / Time Zone / Group: 255 / 120 / 255 sets
Holiday Support: Yes
Remote Control / Event Handle: Yes / Yes
Power Consumption: 440mA ± 5%
Power Requirement: 9 ~ 24VDC / 1A
Operation Temperature: 0°C ~ 65°C
Operation Humidity: 5% ~ 80% RH
Panel Dimension / Weight: 143 x 114 x 21mm / 160g
Metal Box and Power Supply Option: EU/US type

SEMAC-S2

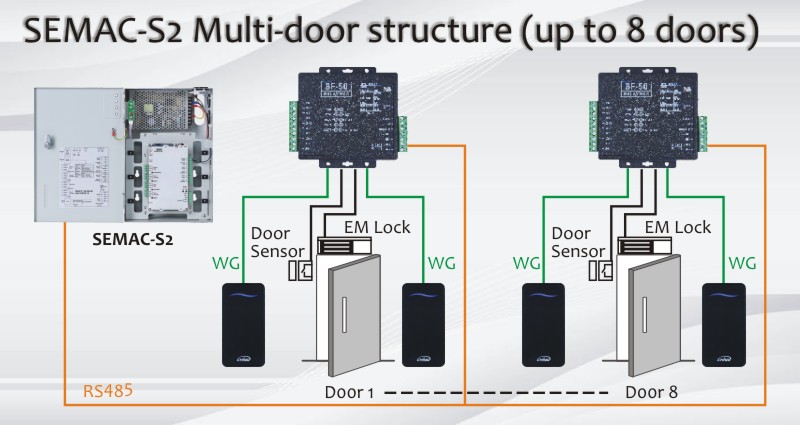

Multi-Door Access Controller: 8 doors through hardware
Unlimited Doors Access Control: Proprietary software support
Bypass Time Zone Access Authority: 10 levels provided
Design: Panel size design access control panel for installation flexibility
Inbuilt HTTP Web Server: For management
Fire Alarm and Event Handle: With email alert
Remote Control: For emergency doors open/close
Metal Box and Power Supply Option: EU/US type
Car Parking Solution: Provided
Multiple Badge / Fast Registry: 10 groups / Yes
Anti-Pass Back / Anti-Duress: Yes / Yes
