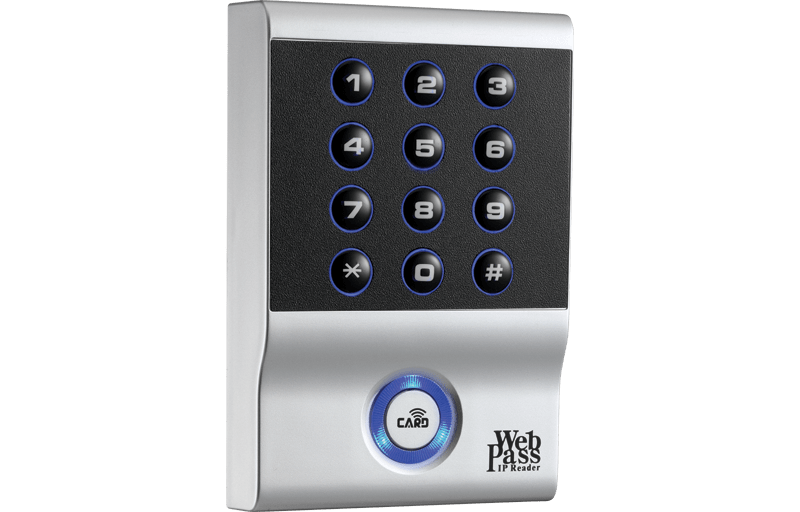

WebPass

Controller Type: Single Controller or Standalone Reader; One Door Entry & Exit
Verification Mode: Card / Password
Data Logs: Real-Time Push System
Card Capacity: 20,000 (Extendable to 50,000)
Weatherproof Rating: IP54 Outdoor Weatherproof Reader Controller
Communications: TCP/IP, Wiegand/RS485
Supported Card Types: EM / Mifare Standard
DIO Support: DI: 3 / DO: 1
Power Over Ethernet (PoE) Function: Yes (Option)
Inbuilt Relays (Max. Power Loading): Door Lock / Ring (120VAC, 0.5A / 30VDC, 1A)
Inbuilt HTTP Web Server: For Management
Power Requirement: 9~24 VDC / 1A
Operation Temperature: 0℃ ~ 65℃
Dimension / Weight: 120 x 80 x 28 mm / 150 g

Additional Features:
Proprietary Software Provided for Advanced Management
System Log: 1536 Entries
Entry Log: 65,535 Entries
Time Set / Time Zone / Group: 255 / 120 / 255 Sets
Holiday Support: Yes
Remote Control / Event Handle: Yes / Yes
Fast Registry: Yes
Anti-Pass Back / Anti-Duress: Yes / Yes
